6 - DC Motor Animation

System in Analysis

The complete example code is available here.
The mechanical powertrain to be studied is the one described in the 5 - DC Motor PWM Control example.

Model Set Up

We can get an animation of the DC motor’s working characteristics:

from gearpy.utils import dc_motor_characteristics_animation

dc_motor_characteristics_animation(
    motor=motor,
    time=powertrain.time,
    interval=10,
    figsize=(10, 5),
    torque_unit='mNm',
    current_unit='mA'
)

See dc_motor_characteristics_animation for more details.

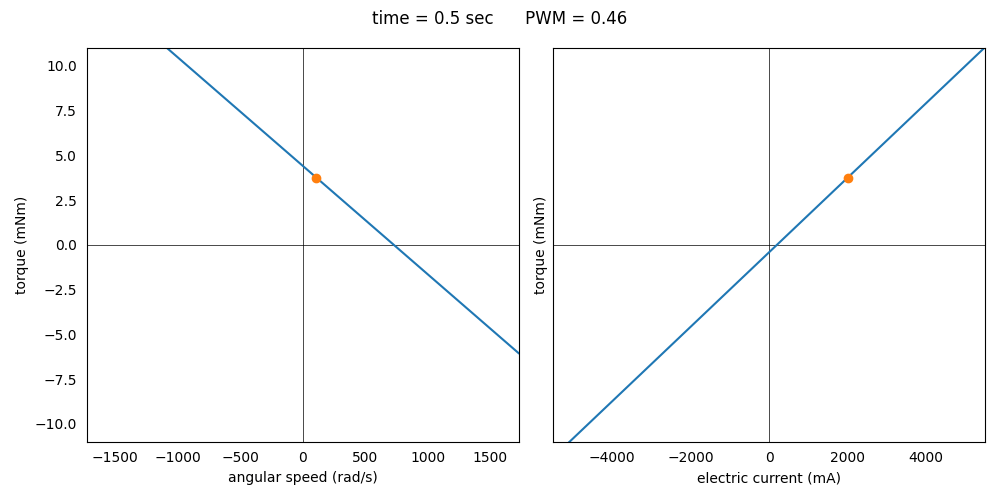

On the left-hand side there is the torque-speed characteristic, while on the right-hand side there is the torque-current characteristic and the orange dot is the working point of the motor. The characteristics can vary based on the PWM value.
